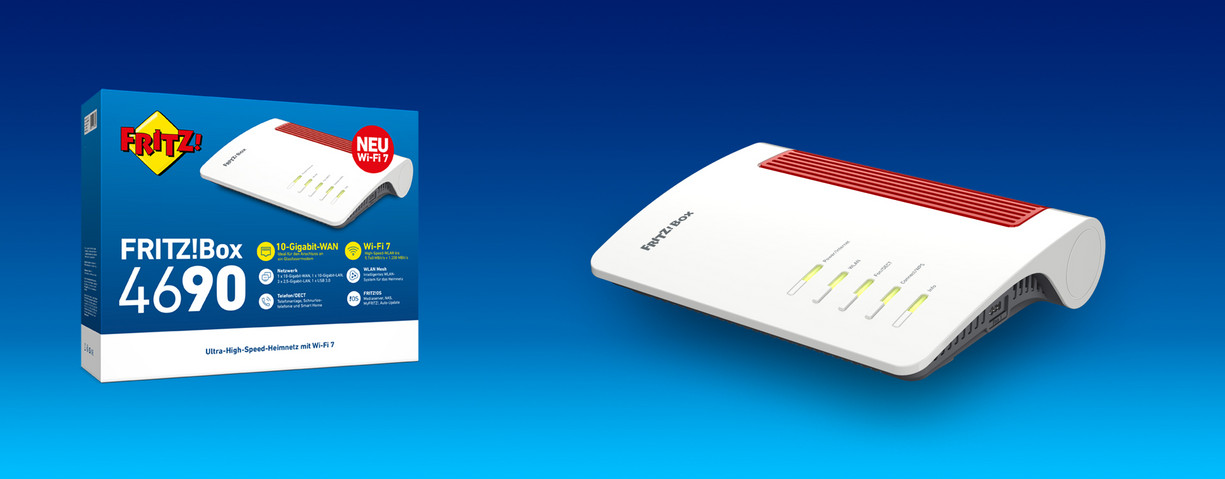

FRITZ!Box 4690

A multi-gigabit home network for the fastest fiber optic connections: The two 10-gigabit connections for WAN and LAN meet the highest requirements for bandwidth and speed. This speed package is rounded off by three 2.5-gigabit LAN ports and Wi-Fi 7 up to 5760 Mbit/s. The intelligent FRITZ!OS ensures easy setup and extensive features.

Wi-Fi 7 – the new generation of Wi-Fi with multi-gigabit!

Wi-Fi 7 brings top Wi-Fi speeds and offers even more powerful connections for multiple devices. That makes it ideal for real-time applications such as gaming, virtual reality and video calls. Wi-Fi 7 is perfectly integrated into the FRITZ! ecosystem – all wireless devices work together optimally in the Mesh Wi-Fi, supplying you with top speeds. With punctured mode, your Wi-Fi can circumvent interference. Your FRITZ!Box automatically ensures you have the best connection. The new Wi-Fi 7 standard adapts to your current environment and also works perfectly with all older wireless devices.

Mesh Wi-Fi with FRITZ!

FRITZ!Box supports Mesh Wi-Fi, meaning your videos, music, and photos seamlessly reach every corner of your home, flat or office. FRITZ!Repeater, FRITZ!Powerline or other FRITZ!Box models adopt the settings of the FRITZ!Box at the internet connection and all devices are always optimally connected – automatically and reliably. With Mesh you enjoy high speeds while surfing, streaming or gaming. Data-hungry applications and breathtaking streaming are now waiting for you – and not the other way around!

Fast fiber optics

With its 10-gigabit WAN port, the FRITZ!Box 4690 is ideal for the fastest fiber optic connections: Simply connect a fiber optic modem and get online at the highest speeds via your fiber optic connection. Of course, you can also use the FRITZ!Box 4690 with a DSL or cable modem.

Speed ​​wherever you look: The multi-gigabit home network

Multi-gigabit at the connection, multi-gigabit in the home network: With an additional 10-gigabit LAN port and three 2.5-gigabit LAN ports, you can connect your bandwidth-hungry devices to the FRITZ!Box 4690.

  • 10-gigabit WAN – ideal for connecting to a fiber optic modem



  • High-speed Wi-Fi up to 5760 + 1200 Mbit/s



  • Intelligent Mesh Wi-Fi for your home or office network



  • Network with 1 x 10-gigabit WAN, 1 x 10-gigabit LAN, 3 x 2.5-gigabit LAN, and 1 x USB



  • Phone system, cordless telephony, smart home



  • Media server, NAS, MyFRITZ!, auto updates



Technical specifications

Interfaces

  • 1 x 10-gigabit WAN
  • 1 x 10-gigabit LAN
  • 3 x 2.5-gigabit LAN
  • Wi-Fi 7
  • DECT base station for cordless phones and smart home
  • 2 x connections (2 x RJ11, 1 x (optional) TAE) for analogue phone, answering machine or fax
  • 1 x USB 3.0 port for storage media and printers



Network

  • Wireless router for connecting to a fiber optic/cable/DSL modem or a dongle
  • Use of existing internet connections via WAN/LAN
  • MyFRITZ! – secure access to your own FRITZ!Box from anywhere
  • VPN (WireGuard / IPSec)
  • Firewall / NAT with port sharing
  • Wake on LAN
  • Parental controls (time budget, youth protection filter, device block)



Wi-Fi

  • up to 5760 Mbit/s via Wi-Fi 7 and up to 1200 Mbit/s via Wi-Fi 6
  • 5 GHz: up to 5760 Mbit/s (Wi-Fi 7); 2.4 GHz: up to 1200 Mbit/s (Wi-Fi 6)
  • 4 x 4 MIMO
  • Mesh Wi-Fi
  • Compatible with the IEEE 802.11a/g/n/ac/ax/be Wi-Fi standards
  • Wi-Fi encryption with WPA3/WPA2
  • Easy connection at the touch of a button (WPS)
  • Wi-Fi guest access / hotspot with captive portal
  • Wi-Fi eco mode for optimal performance at minimum energy consumption
  • Turn Wi-Fi on and off using button, FRITZ!Fon, FRITZ!App, or by schedule



Smart home / media

  • Smart home features for energy and heating
  • Supports smart home devices in accordance with the DECT ULE standard
  • Automation in the smart home with schedules, scenes, and routines with if-then combinations
  • Operation of your FRITZ! Smart Home via the FRITZ!Box user interface, FRITZ!Fon, FRITZ!DECT smart switch or FRITZ!App Smart Home
  • FRITZ!NAS: Central storage for all data in the home network
  • Media server for music, photos, and videos in the home network (DLNA/UPnP AV)
  • Ideal for IPTV and streaming music and videos



Telephony

  • Phone system with DECT base station for up to six cordless phones
  • With FRITZ!Fon additional functions (e.g. calendar or weather forecast)
  • Sockets for two analogue phones, answering machine or fax
  • Registration of IP phones (LAN/Wi-Fi) SIP-compliant
  • Voice transmission encrypted upon delivery
  • Supports HD telephony for natural sound
  • DECT Eco: Wi-Fi network switches off when DECT phones on standby
  • 5 integrated answering machines with option for emailing voice messages
  • Local and online phone books (Google, Apple, CardDAV and more)
  • Fax function with option for emailing fax message
  • Call diversion, internal calls (intercom), three-way conferencing, call transfer, phone number blocks and Do Not Disturb



FRITZ!OS

  • Intuitive browser- and app-based user interface
  • Free FRITZ!Apps for smartphone: MyFRITZ!App, FRITZ!App Smart Home, FRITZ!App Fon, FRITZ!App Wi-Fi, FRITZ!App TV
  • Context-sensitive Online Help
  • Push service mails for events in the home network
  • Security functions with diagnostic tool, Automatic Update, firewall, and filter functions
  • Optional energy-saving mode for even more energy efficiency
  • Free updates with new functions and optimizations



Package Contents

  • FRITZ!Box 4690
  • Power adapter
  • Network cable
  • Quick guide



Device properties

  • Dimensions (W x H x D): 250 x 54 x 184 mm
  • Average energy consumption: 5–7 W

Product Version Number

  • 20003098 FRITZ!Box 4690 Int. Edition
  • 20003102 FRITZ!Box 4690 UK Edition
